Myledy COB LED Strip Light
- Outstanding Quality and Competitive Price
- Top-Ranking R&D Team to Support Your OEM Project
- Amazing Delivery Time
- Unimpeded and Clear Communication
- Warm After-sales Service
MYLEDY is a leading supplier and manufacturer of COB LED strips in China. We offer a wide range of COB LED strip lights, including mono, tunable white/RGB/RGBW, ultra-narrow, and mini-cut, etc. This diverse selection ensures that clients can easily find the perfect match for their specific project needs.
MYLEDY allows for the customization of COB LED strips to meet specific requirements. Clients can specify preferences, and we tailor the COB LED strips accordingly, providing personalized lighting solutions. Choose MYLEDY as your trusted supplier for COB LED strips to experience the reliability, quality, and versatility that our products bring to diverse lighting projects.
myledy COB LED lights series
Single Nature White COB LED Strip
The monochromatic options encompass a spectrum of colors such as white, red, green, blue, yellow, and others. The white light's color temperature ranges from 2400K to 6000K, with a Color Rendering Index (CRI) exceeding 90. The chip density is available in three variants: 320, 400, and 480 chips per meter, ensuring dotless and uniform lighting.
Item: LD-C320H-24-S08-8P0-W
- LED Qty: 320 LEDs/M
- Power: 8 W/M
- PCB Width: 8 mm
- Lumen: 745-845 LM/M
- Voltage: 24V DC 、 12V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 50mm
- Waterproof: IP20, IP65, IP68
- Length/Reel: 5004mm(16.41t)
Item: LD-C400H-24-S10-12P0-W
- LED Qty: 400 LEDs/M
- Power: 12 W/M
- PCB Width: 10 mm
- Lumen: 1060-1310 LM/M
- Voltage: 24V DC 、 12V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 100mm
- Waterproof: IP20, IP65, IP68
- Length/Reel: 5004mm(16.41t)
Item: LD-C480H-24-S10-15P0-W
- LED Qty: 480 LEDs/M
- Power: 15 W/M
- PCB Width: 10 mm
- Lumen: 1350-1560 LM/M
- Voltage: 24V DC / 12V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 50mm
- Waterproof: IP20, IP65, IP68
- Length/Reel: 5004mm(16.41t)
Mono Color COB LED Strip Light
Item: LD-C480H-24-S10-10P0-R/G/B/Y
- LED Qty: 480 LEDs/M
- Power: 10 W/M
- PCB Width: 10 mm
- Lumen: Red-68LM/M, Green-1180LM/M, Blue-175LM/M, Yellow-800LM/M
- Voltage: 24V DC
- Cutting Length: 50 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Mini PCB COB LED Strip Light
Mini PCB COB LED strip series has high brightness and ultra-narrow PCB with thickness of only 4mm/ 6mm. It can meet the needs of gap lighting, such as cabinet lights, wall decoration lights, etc.
Item: LD-C480-24-S04-04P0-W
- LED Qty: 480 LEDs/M
- Power: 4 W/M
- PCB Width: 4 mm
- Lumen: 280-350 LM/M
- Voltage: 24V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 50mm
- Waterproof: IP20
- Length/Reel: 2500mm(8.36ft)
Item: LD-C480-24-S06-06P0-W
- LED Qty: 480 LEDs/M
- Power: 6 W/M
- PCB Width: 6 mm
- Lumen: 420-530 LM/M
- Voltage: 24V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 50mm
- Waterproof: IP20
- Length/Reel: 5004mm(16.41ft)
Ultra Long COB LED strip Light
This ultra-long COB LED strip features a constant current circuit design, ensuring stable brightness throughout its length. With a single end power supply, it supports a running length of up to 13 meters. The consistent brightness from head to tail guarantees uniform lighting effects. Additionally, it operates on a low voltage DC24V input, ensuring both safety and efficient illumination.
Item: LD-C336-24-S08-06P0-W-L15
- LED Qty: 336 LEDs/M
- Power: 5.8 W/M
- PCB Width: 8 mm
- Lumen: 450-500 LM/M
- Voltage: 24V DC
- Color: 2400K – 6500K
- CRI: >90
- Cutting Length: 41.7mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 15M(49.21ft)
Item: LD-C420-24-S10-07P0-W-L15
- LED Qty: 420 LEDs/M
- Power: 7.2 W/M
- PCB Width: 10 mm
- Lumen: 570-620 LM/M
- Voltage: 24V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 50mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 15M(49.21ft)
Mini Cut COB LED Light
Mini cut COB LED strip lights offer users the ability to cut the strips at 10mm shorter intervals, providing enhanced flexibility for achieving precise and customized lighting lengths to suit specific needs. The Free-Cut COB LED Strip Lights have a unique design allowing cutting anywhere along the strip, thanks to the straight line of tinned copper on the surface. This facilitates easy and precise customization, ensuring a dot-free appearance for ideal linear or direct illumination.
Item: LD-C300E-12-S10-10P0-W
- LED Qty: 300 LEDs/M
- Power: 10 W/M
- PCB Width: 10 mm
- Lumen: 700-950 LM/M
- Voltage: 12V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 10 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Item: LD-C600E-24-S10-10P0-W
- LED Qty: 600 LEDs/M
- Power: 10 W/M
- PCB Width: 10 mm
- Lumen: 700-950 LM/M
- Voltage: 24V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 10 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Item: LD-C528E-12-S08-13P0-W
- LED Qty: 528 LEDs/M
- Power: 13 W/M
- PCB Width: 8 mm
- Lumen: 1150-1250 LM/M
- Voltage: 12V DC
- Color: 2400K – 6500K
- CRI: >90
- Cutting Length: Free Cut
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Tunable white COB LED strip Light
The tunable COB LED Strip Light offers a versatile lighting solution, allowing you to experience a full spectrum of white ambiances. With a simple touch, it smoothly transitions between light colors ranging from 2700K to 6500K. Additionally, it features a dimmable function, enabling you to adjust the intensity for various purposes. Two options are available: 608LED with 14W and 840LED with 20W, providing flexibility to meet different lighting preferences and requirements.
Item: LD-C608-24-S10-14P0-DW
- LED Qty: 608 LEDs/M
- Power: 14 W/M
- PCB Width: 10 mm
- Lumen: 630-770 LM/M
- Voltage: 24V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 26.3 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Item: LD-C840-24-S10-20P0-DW
- LED Qty: 840 LEDs/M
- Power: 20 W/M
- PCB Width: 10 mm
- Lumen: 840-1940 LM/M
- Voltage: 24V DC
- Color: 2200K – 6500K
- CRI: >90
- Cutting Length: 50 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
RGB/RGBW COB LED Strip Light
RGB/RGBW COB LED strip lights provide versatile color options and high-density, uniform lighting. Ideal for diverse applications like homes, offices, patios, passageways, signage, and events, these strips are dimmable and color-adjustable via remote control or smartphone for convenient and personalized lighting solutions.
Item: LD-C576-24-S10-14P0-R
- LED Qty: 576 LEDs/M
- Power: 14 W/M
- PCB Width: 10 mm
- Lumens: Red-160lm/m, Green-330lm/m, Blue-60lm/m
- Voltage: 24V DC
- Color: RGB
- Cutting Length: 62.4 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Item: LD-C768-24-S10-14P0-R
- LED Qty: 768 LEDs/M
- Power: 14 W/M
- PCB Width: 10 mm
- lumens: Red- 180lm/m, Green-340lm/m, Blue-80lm/m
- Voltage: 24V DC
- Color: RGB
- Cutting Length: 31.3 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Item: LD-C784-24-S12-19P0-RW
- LED Qty: 784 LEDs/M
- Power: 19 W/M
- PCB Width: 12 mm
- Lumens: Red-160lm/m, Green-415lm/m, Blue-85lm/m, White-485lm/m
- Voltage: 24V DC
- Color: RGBW
- Cutting Length: 71.4 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Item: LD-C840-24-S12-18P0-RW
- LED Qty: 840 LEDs/M
- Power: 18 W/M
- PCB Width: 12 mm
- Lumens: Red-110lm/m, Green-450lm/m, Blue-60lm/m, White-480lm/m
- Voltage: 24V DC
- Color: RGBW
- Cutting Length: 33.3 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
SPI RGB/RGBW COB LED Strip Light
SPI digital COB LED strip lights, equipped with an SPI serial interface, enable independent control over the RGB/RGBW color and brightness of each mounted LED. Also known as pixel LED tape or programmable LED strips, they offer limitless lighting possibilities by transmitting control data through a Serial Peripheral Interface (SPI), providing dynamic and customizable lighting effects.
Item: LD-C576-24-S10-18P0-SR
- LED Qty: 576 LEDs/M
- Power: 18 W/M
- PCB Width: 10 mm
- Voltage: 24V DC
- Color: SPI Digital RGB
- Cutting Length: 62.4 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Item: LD-C784-24-S10-21P0-SRW
- LED Qty: 784 LEDs/M
- Power: 21 W/M
- PCB Width: 10 mm
- Voltage: 24V DC
- Color: SPI Digital RGBW
- Cutting Length: 71.4 mm
- Waterproof: IP20 / IP65 / IP68
- Length/Reel: 5004mm(16.41ft)
Committed To Helping Our Clients Succeed
Free Sample Support
Elaborate on the title to describe the various things included in the service & attract visitors to know more.
5 Years Warranty
Elaborate on the title to describe the various things included in the service & attract visitors to know more.
Valuing Partnership
professional and active sales team. humility, practicality, and honesty always be our principle
Top quality COB LED Light from Myledy
complete production process of COB LED light
Step 1: Fix resistor
Fix the required resistor on FPCB with solder paste.
Step 2: Chip bonding
Chip expansion, and then use equipment to fix the chip on the FPCB.

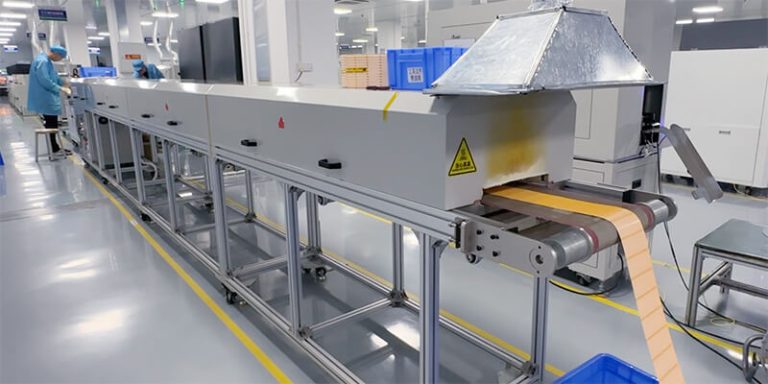

tep 3: Reflow
Through the reflow oven at over 65°C high temperature, the resistor and chip are completely soldered on the FPCB.
Step 4: The PCBA testing
Use professional equipment to light up the PCBA with soldered resistors and chips for testing.
Step 5: Apply fluorescent glue
Provisioning phosphor glue according to the order requirements and test the CCT. After passing the test, use an automatic dispensing machine to pull the glue to the surface of the PCBA.
Step 6: Oven baking
Short high-temperature baking to shape the COB light strip with glue; then long-term curing baking.
Step 7: COB LED board separation and Wire welding
Divide the COB LED board into single strips, cut the strip into standard 5M, and weld the wires (plug wires can also be customized).
Step 8: QC Test
Vibration detection and high and low voltage lighting detection.
Step 9: Aging Test
Step 10: Paste 3M sticker and into a roll
Step 11: Final QC test and Packaging
Normally we use myledy standard Anti-static bags for packaging, and we can also customize the bag for clients.
Our Top Quality COB Light is Based on Each Detail.
brand chip
We use Epistar chip for our COB LED strip light, high brightness, no light spot, high color rendering, low light decay, durable.
Top FPC
We use double-sided electrolytic copper PCB, with gold-plated process, excellent flexibility, oxidation resistance and high temperature resistance.
top-grade silicon gel
Our COB LED light is packaged with top-grade silicon gel, which with high light transmittance that can provide better protection and softer light.
Excellent color consistency
Same as Myledy other LED strip lights, our LED COB light will maintain our consistent of excellent color consistency，that can get up to 3 SDCM.
convenient customization
We can customize the length, CCT, outlet cable connector, etc. of the COB LED strip according to clients' requirements. furthermore, Myledy professional engineering team can also customize a brand new OEM light strip for you.
know about COB LED strip light
One of the most popular LED lights today, COB LED strips, offers you both style and convenience. But what are COB LED strips, and what to look for when buying one? Is COB LED strip a better option than other popular LED products? Let’s explore all these answers here.
What's COB? What's COB LED Strip Light?
Chip-on-Board or “COB” refers to the mounting of a bare LED chip in direct contact with a substrate (such as silicon carbide or sapphire) to produce LED arrays.
The construction of COB LED strips is different from that of the regular SMD LED strip. SMD LEDs are soldered to the packaging strip. COB LEDs are lined onto the PCB and then covered using translucent material.
Due to this translucent material, COB LED strip light will provide a continuous ray of light. This makes COB LED different from SMD strips. Not only is there more light intensity, but it also gives off a nice effect, making the LEDs stand out.
What Colors are Available for COB LED Strips？
Similar to SMD strips, COB strips are also available in various colors to achieve the application requirements of different occasions. You’ll find COB LEDs in the following color options:
- normal mono-natural white 2200K~6500K
- mono color - Red / Green / Blue / Yellow
- Tunable Natural white
- Multi RGB / RGBW / RGBWW
- SPI Digital control RGB / RGBW
What is IP Grade Available for COB LED Strips?
Same as SMD LED strip lights, COB LED strips can also achieve a variety of waterproof modes, including IP65 silicone sleeve waterproof grade and IP68 fully enclosed waterproof level. That makes COB LED lights meet the waterproof requirements of various occasions.
IP20 - Non-waterproof
This is best for indoor use as not waterproof at all. You can set up these in your cabinet, bedroom, or living room.
IP65 - Silicone Extrusion
This COB LED strip has a silicone sleeve and is perfect for outdoors. They can handle low water pressure, so you can also use them in damp areas as long as you don't submerge them into the water.
IP67 - COB LED Neon
This COB LED strip has a silicone sleeve and is perfect for outdoors. They can handle low water pressure, so you can also use them in damp areas as long as you don't submerge them into the water.
IP68 - Silicone Fully Encapsulation
The COB LED tape is completely enclosed in a silicone sleeve and then filled with liquid silicone to achieve IP68 waterproof grade. These are designed to withstand submersion in water and are suitable for outdoor use, such as in gardens, or around pools.
Which One to Choose? COB Strip vs SMD Strip
COB LED strip light uses chip-on-board technology. It’s an encapsulation of the chip packaged onto a flexible PCB board.
One of the most common LED lights you’ll find in the market is the SMD LEDs. For these LEDs, the chip is permanently embedded onto the printed circuit board.
COB LED Strip light is Dot Free
The structural characteristics of COB LED strips make them more beneficial in comparison to SMD LEDs. Unlike the luminous bed structure of SMD strips, the surface from which the light is emitted in COB is a linear colloid, resulting in a more uniform light.
COB LED Strip light with Wider Lighting Angle
The COB strip’s 180° illumination angle is larger than the 120° angle of SMD light strips. Simply put, a better aesthetic and better lighting.
COB LED Strip is More Flexible
Compared SMD LED strip, COB LED strip removed the Lamp bead holder from its design, except for the LED chip, yellow phosphor cover layer, and connection pads. That makes the COB strip more slight and flexible.
What's the Application of COB LED Strips?
As mentioned earlier, one of the best things about COB LED strips is that it creates a smooth, seamless beam of light. You won’t see any visible spots, making it perfect for using on reflective surfaces like granite countertops and tiled floors.
Moreover, this feature allows you to use these light strips for narrow places. So, you can light up your jewelry box or use these lights for backlighting.
Besides, as chip-on-board technology not only provides high-quality lighting, It also prevents heat from building up, which gives the LED strip more flexibility.
Widely application of LED COB Strip light:
Does COB LED Strips Need a LED Profile for Heat Dissipation?
Like all LED strip lights, it’s best to get a LED profile for your COB LED strips. High-power LEDs must remove heat using thermal management. Without proper management, you might end up damaging your LEDs.
The aluminum extrusions provide a path for the heat to travel from the COB LED to the external environment.
Before you select a heat sink for your COB LED strip, be sure to consider how the following impact the heating and cooling processes:
- Wattage
- Surrounding temperature
- If your LEDs have adhered in a closed or open space
Attentions for Installation and Use of COB LED Strip Light
Although COB LED strip light is very slight and flexible, we still need to pay attention to the following matters when installing and using it to ensure that our lighting project proceeds smoothly and safely.
Frequently Asked Questions & Answers
The choice between COB (Chip-on-Board) LED strip lights and SMD (Surface Mount Device) LED strip lights depends on the specific requirements of your lighting application. COB LEDs are favored for applications where seamless and uniform lighting is crucial, while SMD LEDs offer a wider range of options and are often more cost-effective.
The disadvantages of COB LED strips include higher cost, limited flexibility, potential size concerns, fewer color and brightness options compared to SMD strips, heat dissipation considerations, and increased complexity in repair.
Yes, you can cut the COB LED strip along the designated cutting marks. Additionally, certain specially designed COB LED strips offer the flexibility to be cut freely. Here are the steps of how to cut COB LED strips:
Yes. For easy DIY, you can find many kinds of convenient connectors for COB LED tapes, such as below:
We offer a range of waterproof COB LED strips to suit different needs:
Non-waterproof (IP20): Ideal for indoor use, these COB LED strips lack waterproofing and are designed for interior applications.
Water-resistant (IP65 or IP67): Featuring a protective coating, these COB LED strips are water-resistant, making them suitable for use in damp environments or areas exposed to occasional splashes.
Waterproof (IP68): Designed for demanding applications, our fully waterproof COB LED strips with an IP68 rating can withstand submersion. Perfect for outdoor use, including gardens, around pools, or in other weather-exposed areas.
- Yes, all MYLEDY COB LED strips are dimmable, allowing users to adjust the brightness based on their preferences.
Using an LED aluminum profile can enhance thermal management, especially in applications with prolonged high-brightness use or limited ventilation.
Myledy LED strip COB has a lifespan similar to SMD LED strips. They can last for around 50,000 hours. Even though the initial investment is a bit high, these lights last you a long period.
Also, LED COB strip light consumes less energy, so not only will your light last for at least 4 to 5 years, but you’re also saving on electricity costs.
All the LED strips, including COB LED, are designed to prevent excessive heat from damaging the lighting strip. The circuit board acts as a heat sink, drawing heat from the individual LEDs and transferring it to the surface to which the strip is attached. Therefore, normal COB LED strips can be safely used in temperature-sensitive locations due to their effective heat dissipation. And some higher-powered COB LED strips, it is better to install an additional aluminum channel, to achieve the most efficient heat transfer.
Top Quality COB LED Lights
- LED Chip – Generally, MYLEDY Led strips are using Epistar LED chips. We can also take other brand chips according to customers’ requirements such as Cree Samsung Philips chips etc. High quality LED strip lights are myledy’s consistent pursuit.
- PCB Board – Myledy uses at least 2 oz 100% pure copper pcb plates, some are 3 ounces and 4 ounces for better heat dissipation. Our PCB boards are purchased from well-known PCB producers that can meet the CE, RoHS, UL etc requirements and ensure excellent quality.
- Top Silicone Skin – As an important component of neon lights, the quality of silicone skin will affect the brightness and uniformity of neon light. Myledy has always used the top quality silicone to produce the most elegant and durable neon lights.
Color Consistency
Color consistency is particularly important for Myledy focusing on high quality projects. Apart from ensuring color consistency for one order, we will record each batch BIN number (≤2 Step, +/-50K) ensuring that the following orders can be as consistent as possible before orders. To make sure guests projects display perfect lighting effect.
Extreme Strict Quality Control
Myledy automated production equipment allows inspection of each step of production, to ensure zero failure rate and the delivery time within 7-15 working days. Every stage of production is inspected by trained QC workers. All strip lights will undergo a 4-8 hours aging test to ensure 50000hours lifespan.
Flexible MOQ & Competitive Price
Myledy’s regular MOQ is 200m, but flexible MOQ customized lighting projects are also available. Opt for MYLEDY as your LED Neon Flex supplier and enjoy competitive wholesale prices when buying in bulk.
Experienced R&D Teams and Sales Team
Our experienced R&D team enable myledy to innovate continuously, while satisfy customer requirements for OEM projects. Our professional sales-mate reply your questions at first time.
Intimate after-sales service
All Myledy LED strip lights provide 5-year after-sales service. Our professional and considerate service will make your lighting project worry-free forever.
For your “done-and-forget” LED lighting projects
What
We can do
for you?
Free Samples
Myledy can provide Free samples of LED strip for customers to better decide what products are needed for his projects.
LOGO Printing
Customized LOGO, date, batch number etc. can be printed on LED strip PCB.
Special Accessories
Relevant cables, connectors, LED profiles, power and other special accessories are available for your projects.
Customized Length & Color
Myledy is proficient in color consistency of led strip lights, we keep one bin and make customized length of LED tape for your projects.
Certificates & Testing Reports
Myledy LED Strip lights have CE, UL, RoHS certificates, and we can profile LM80, IES, Integrating sphere test reports
Prompt Delivery & Economic Freight
7~8 days for regular IP20 LED Strip; 15 days for IP62~IP65 LED tapes; 14~18 days for LED neon flex. Shipment by sea or air is based on your requirement.
