specifications:
- Item No. : LD-2835G-24-70S08-05P0-W
- Dimension
- Technical Details
Power 4.8 w/m Light efficacy 125 lm/w (+/-10%) Luminous flux 500-600 lm/m PCB width 8 mm Voltage DC 24V Cutting interval 100 mm IP lever
- Item No. : LD-2835G-24-140S08-09P0-W
- Dimension
- Technical Details
Power 9.6 w/m Light efficacy 125 lm/w (+/-10%) Luminous flux 1000-1200 lm/m PCB width 8 mm Voltage DC 24V Cutting interval 50 mm IP lever
- Item No. : LD-2835G-24-210S10-14P0-W
- Dimension
- Technical Details
Power 14.4 w/m Light efficacy 125 lm/w (+/-10%) Luminous flux 1500-1800 lm/m PCB width 10 mm Voltage DC 24V Cutting interval 33.3 mm IP lever
- Item No. : LD-2835G-24-128S10-09P0-W
- Dimension
- Technical Details
Power 9.6 w/m Light efficacy 140 lm/w (+/-10%) Luminous flux 1150-1300 lm/m PCB width 10 mm Voltage DC 24V Cutting interval 62.5 mm IP lever

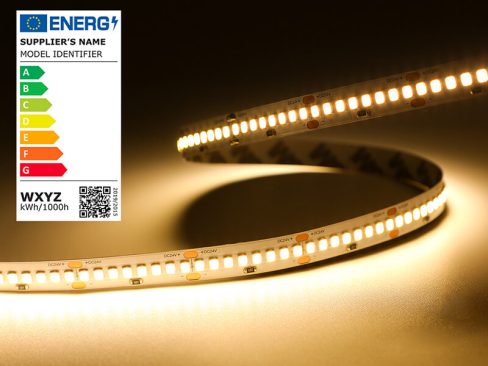

Introduction of 2835G SMD LED:
2835G is one of our highest efficient led strip series, up to 180lm/w, more energy saving and brightness up to 2000lm/m. If you are looking for led strip with a extremely high efficiency, then our 2835G series will be your right choice.
Features of 2835G LED Strip light:
- 80 CRI(Color Rendering Index)
- 2400K~6500K Widely CCT range
- Up to 3 Step Color Consistency
- Fully Dimmable
- Perfect Heat-dissipation to ensure 50000hours Lifespan.
There are three series:
- 7 led/group design(70led/m, 140led/m, 210led/m, 280led/m), up to 140 lm/w
- 8 led/group design(64led/m, 80led/m, 128led/m, 160led/m), up to 155 lm/w
- 9 led/group design(54led/m, 72led/m, 126led/m, 144led/m), up to 180 lm/w
Application & Wide Use
The Ultra-high efficiency series is destined to replace partial point sources as the part of the main lighting. This series are widely used in hotel, hobby, conference room, swimming pool ,bathroom and other ceiling areas, parts of the wall hidden area , with linear profiles, flexible mask, to achieve a certain main lighting effect. While the linear lighting also can play the role of sketching the three-dimensional space and setting off the space atmosphere. The mode of invisible light lighting is the development trend of modern and future.
- Hotel hobby
- Conference room
- Swimming pool
- Bathroom
- Above cabinet lighting
- Under counter lighting
Why we use 2835 instead of 3528 & 3014?
LED SMD | Picture | SMD Size | Luminous Area | Lateral Luminescence | Heat Dissipation Form | Heat Dissipation Effect | Luminous Angle |
3528 SMD | ![]() | 35*28*1.9 mm | 4.5㎡ | Normal | No | Poor | 95° |
3014 SMD | ![]() | 30*14*0.8 mm | 3.64㎡ | Weak | With heat sink | Normal | 90° |
2835 SMD | ![]() | 28*35*0.8 mm | 9.18㎡ | Strong | With heat sink | Excellent | 120° |
The Outstanding Features of 2835 SMD LED:
- the chip uses high-power back aluminizing process, heat dissipation is more direct.
- The heat of the chip is derived directly from the bottom of the bracket, which has a larger heat dissipation area and better heat dissipation performance than 3014.
- The luminous surface is rectangular, with large luminous area, large luminous angle and uniform luminous area relative to 3014 and 3528. The luminous area is 2.3times of 3014 and 2.1times of 3528.
- 2835 is an upgraded new light source, which is widely used, overcomes the disadvantage of small side luminous angle of 3014, and effectively solves the phenomenon of point light source in 3528 lighting application.
- According to the product model and customer heat dissipation conditions, a variety of currents of 20-50 Ma can be used.
- To increase the light transmittance by 10%, 85-95% light transmission cover can be used, especially on LED fluorescent lamps.
Myledy IP Grade Introduction:
IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.
Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.
IP20
Non-Waterproof
![IP20 without waterproof](https://www.myledy.com/wp-content/uploads/2020/06/IP20-without-waterproof.jpg)
![](https://www.myledy.com/wp-content/uploads/2020/06/IP20-using-case.jpg)
IP62
Silicon Glue
![IP62 silicon glue](https://www.myledy.com/wp-content/uploads/2020/06/IP62-silicon-glue.jpg)
![](https://www.myledy.com/wp-content/uploads/2020/06/iP-62-using-case.jpg)
IP65
Silicon Sleeve
![IP65 silicon sleeve](https://www.myledy.com/wp-content/uploads/2020/06/IP65-silicon-sleeve.jpg)
![](https://www.myledy.com/wp-content/uploads/2020/06/IP65-using-case.jpg)
IP66
Silicon Extrusion
![](https://www.myledy.com/wp-content/uploads/2020/06/IP66-silicon-extrusion.jpg)
![](https://www.myledy.com/wp-content/uploads/2020/06/IP65-using-case.jpg)
IP67
Silicon Glue with
Half Sleeve
![](https://www.myledy.com/wp-content/uploads/2020/06/IP67-silicon-glue-silicon-case.jpg)
![](https://www.myledy.com/wp-content/uploads/2020/06/IP67-using-case.jpg)
IP68
Silicon Glue With
Full Sleeve
![IP68 Silicon glue+silicon case](https://www.myledy.com/wp-content/uploads/2020/06/IP68-Silicon-gluesilicon-case.jpg)
![](https://www.myledy.com/wp-content/uploads/2020/06/IP68-using-case.jpg)
CCT Spectrum Reference:
What Is CCT?
CCT(Correlated Color Temperature at which the light works) is represented by the number and the capital letter K (Kelvin), tells you the hue of white light. The smaller the Kelvin rating, the warmer the light, and vice versa. “Warm” and “Cool” do not describe the working temperature of the light, but rather the effect of light on us.
![CCT spectrum](https://www.myledy.com/wp-content/uploads/2020/06/CCT-spectrum-1024x210.jpg)
What CCT Should I Choose?
The color temperature of the LED lighting effects your mood. The amount of white in your room will magnify this effect. If your space has white walls and ceilings, and you choose a warmer white tone, it will look warmer than using a dark color scheme. Conversely, if your room is dim, you may need a cooler white tone so you can see the room clearly.
![CCT in one day](https://www.myledy.com/wp-content/uploads/2020/06/CCT-in-one-day-1024x520.jpg)
Wiring Diagram:
First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.
Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.
Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.
![](https://www.myledy.com/wp-content/uploads/2020/12/led-strip-wiring-diagram-2.jpg)
![](https://www.myledy.com/wp-content/uploads/2020/12/led-strip-wiring-diagram-1.jpg)
