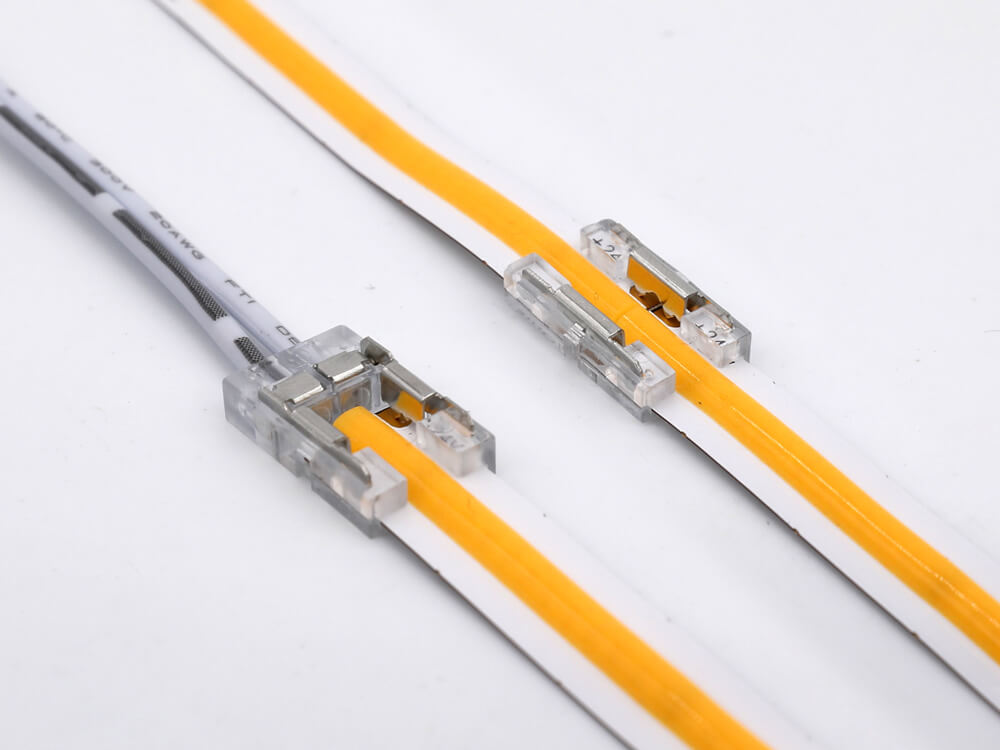

COB LED Strip Light Connector
- For IP20 COB LED strip lights
- Seamless Effect in LED Aluminum Channel
- Workable for 8mm/10mm wide strip
- Support current up to 5A
- No affection to lighting performance
Specifications:
- This is a brand new connector specially designed for COB led strip lights, it can get rid of the dark area by the improve design. In addition, this connector is smaller and can be flexibly installed in a compact aluminum profiles.
Applications & Use:
IP20 COB strip connectors are an excellent and reliable way of joining COB LED strip to strip or strip to cable.
They are specially designed for COB led strip. You just need to insert the COB led strip into the clamp position of the connector. This will make a strong physical and electrical connection ensuring a reliable joint.
Types Of NS Connectors:
- For 2 Pin 8mm PCB， single color, IP20 non-waterproof LED strip
| Item No. | LD-NC0802 | LD-NC0812 | LD-NC0822 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 15cm | 15cm |
| Working Voltage & Current | DC3V~24V 5A | ||
| Wire Gauge | 2*20AWG / 0.52mm2 | ||
| Head Size | 15.6*9.6*3.3mm | ||
- For 2 Pin 10mm PCB， single color, IP20 non-waterproof LED strip
| Item No. | LD-NC1002 | LD-NC1012 | LD-NC1022 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 15cm | 15cm |
| Working Voltage & Current | DC3V~24V 5A | ||
| Wire Gauge | 2*20AWG / 0.52mm2 | ||
| Head Size | 15.611.6*3.3mm | ||
Myledy IP Grade Introduction:
IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.
Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.
IP20
Non-Waterproof
IP62
Silicon Glue
IP65
Silicon Sleeve
IP66
Silicon Extrusion
IP67
Silicon Glue with
Half Sleeve
IP68
Silicon Glue With
Full Sleeve
Regular Wiring Method:
First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.
Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.
Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.
