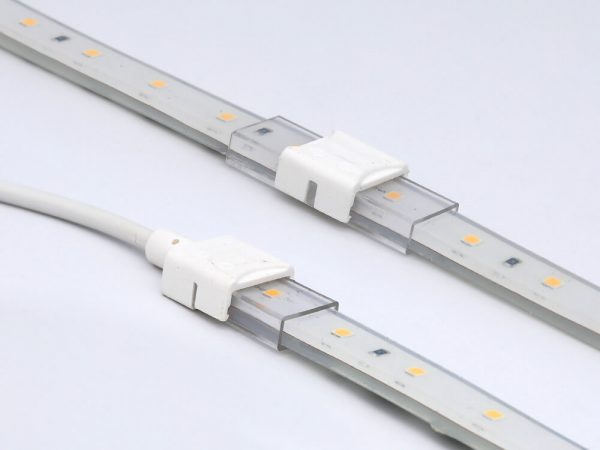

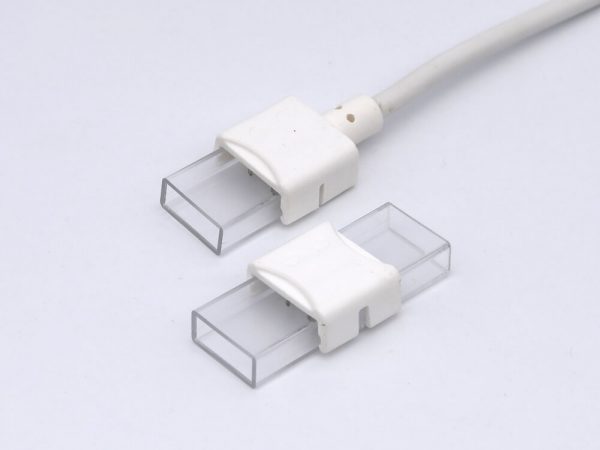

IP68 Silicone Solid Tube LED Strip Connector
- For IP68 solid tube waterproof led strip
- Without removing surface silicone coating gel
- Workable LED qty 30-120led/m
- Optional for single color, dual white, RGB led strip
- Support current up to 5A
- Solderless design, easy to use
Specifications:
- This connector is specially designed for solid glue injected waterproof LED strip lights, It’s suitable for ordinary injection molding or extruded IP68 strip lights on the market. It’s easy to use and can quickly connect the strip lights without welding and stripping the wire. In addition, transparent design will not affect the lighting.
Applications & Use:
Hippo NB Series – IP68 LED strip connectors are an excellent and reliable way of joining LED strip to strip or strip to cable.
They are specially designed for solid silicone tube led strip. Simply select the correct size connector, insert the tape and close the connector until it latches. This will make a strong physical and electrical connection ensuring a reliable joint.
Types Of NB Series IP68 LED Strip Connectors:

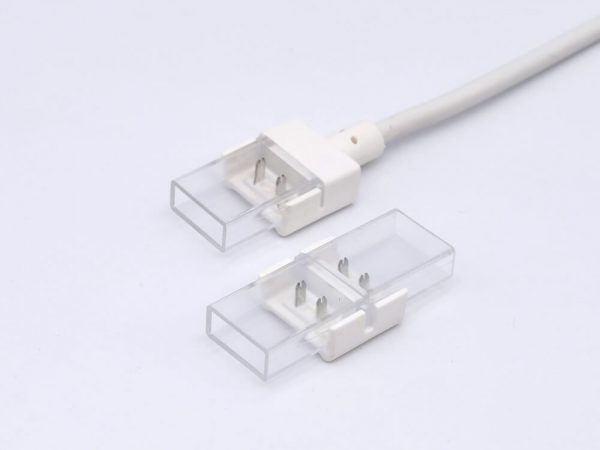

- For 2 Pin 8mm PCB， single color, IP68 10mm silicone tube LED strip
| Item No. | LD-NB0802 | LD-NB0812 | LD-NB0822 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 20cm | 20cm |
| Working Voltage & Current | DC3V~36V 5A | ||
| Wire Gauge | 2*20AWG / 0.52mm2 | ||
| Wire OD | Φ 4.0mm | ||
| LED Strip Cross Section Size | 10*4.6mm | ||
- For 2 Pin 10mm PCB， single color, IP68 12mm silicone tube LED strip
| Item No. | LD-NB1003 | LD-NB1013 | LD-NB1023 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 20cm | 20cm |
| Working Voltage & Current | DC3V~36V 5A | ||
| Wire Gauge | 2*20AWG / 0.52mm2 | ||
| Wire OD | Φ 4.0mm | ||
| LED Strip Cross Section Size | 12*4.6mm | ||

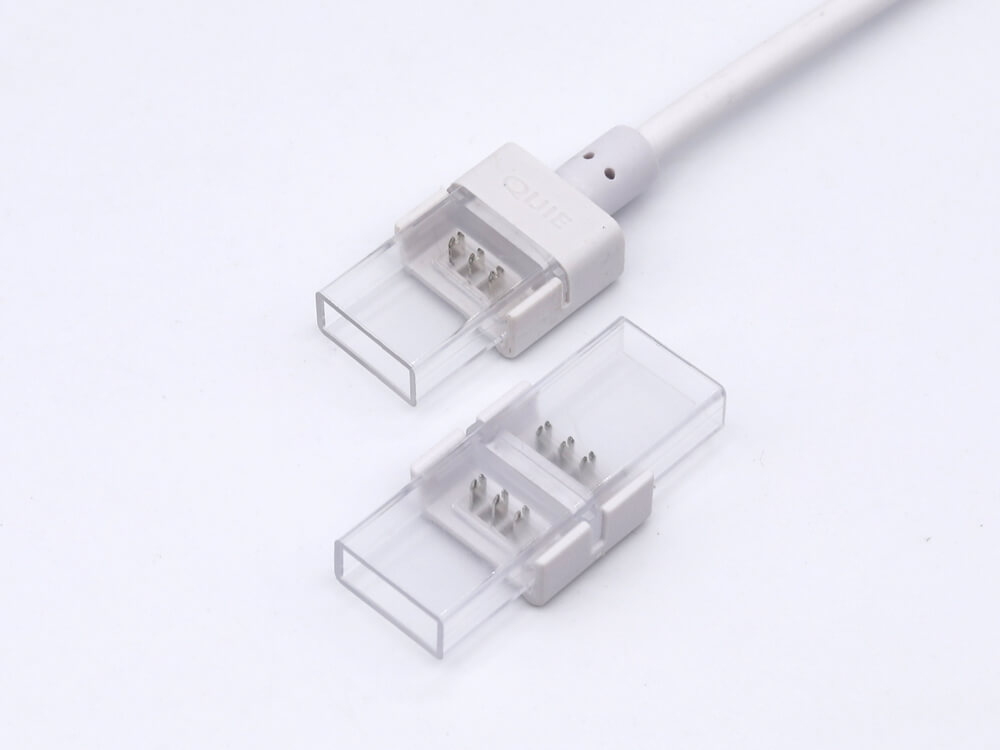

- For 3 Pin 10mm PCB, dual white color, IP68 12mm silicone tube LED strip
| Item No. | LD-NB1002 | LD-NB1012 | LD-NB1022 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 20cm | 20cm |
| Working Voltage & Current | DC3V~36V 5A | ||
| Wire Gauge | 3*20AWG / 0.52mm2 | ||
| Wire OD | Φ 4.0mm | ||
| LED Strip Cross Section Size | 12*4.6mm | ||

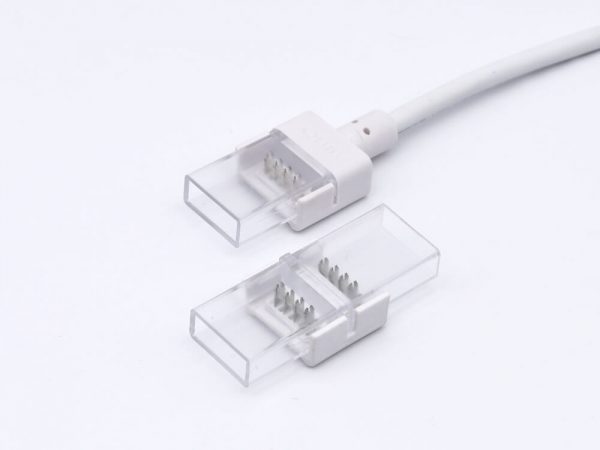

- For 4 Pin 10mm PCB, RGB color, IP68 12mm silicone tube LED strip light
| Item No. | LD-NB1004 | LD-NB1014 | LD-NB1024 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 20cm | 20cm |
| Working Voltage & Current | DC3V~36V 5A | ||
| Wire Gauge | 4*20AWG / 0.52mm2 | ||
| Wire OD | Φ 4.0mm | ||
| LED Strip Cross Section Size | 12*4.6mm | ||
Myledy IP Grade Introduction:
IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.
Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.
IP20
Non-Waterproof
IP62
Silicon Glue
IP65
Silicon Sleeve
IP66
Silicon Extrusion
IP67
Silicon Glue with
Half Sleeve
IP68
Silicon Glue With
Full Sleeve
Regular Wiring Method:
First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.
Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.
Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.
