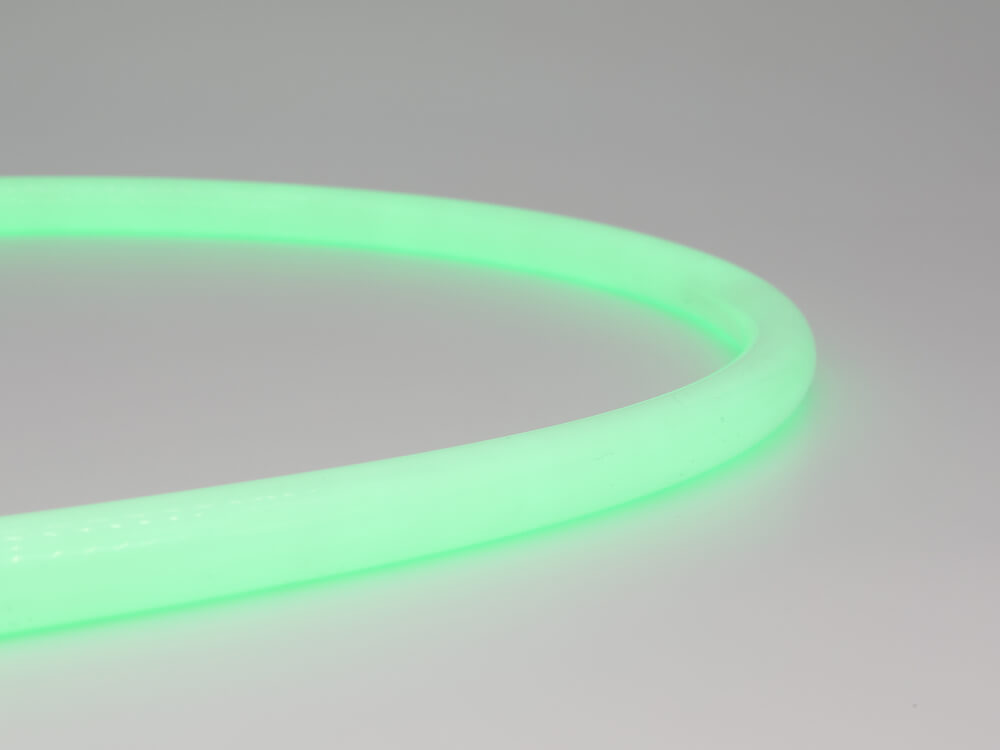

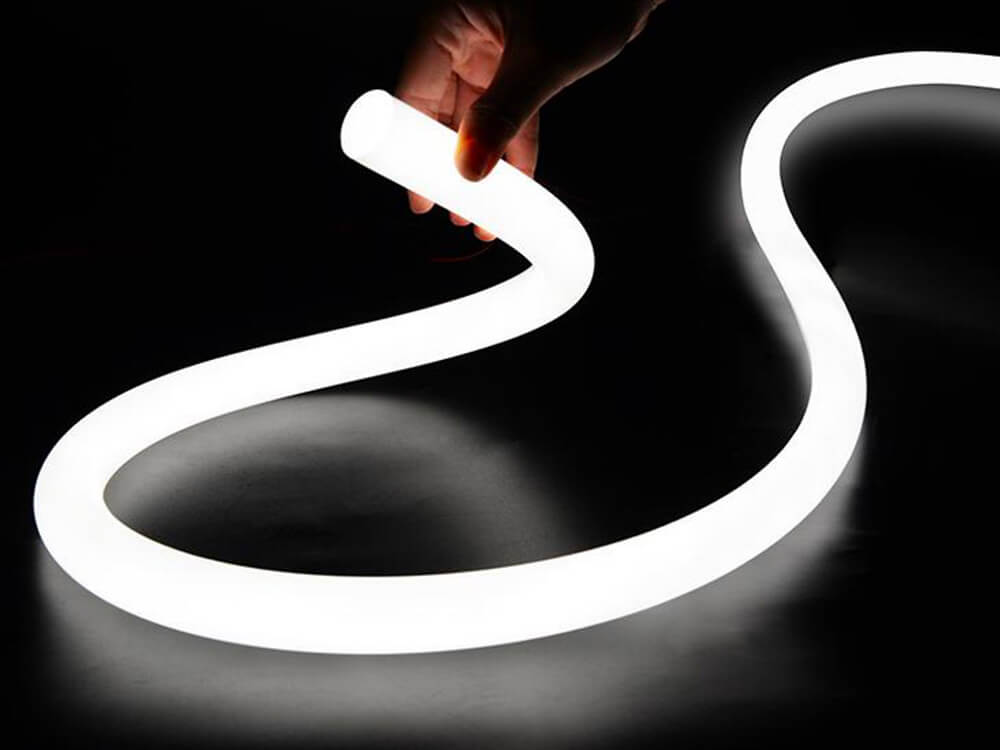

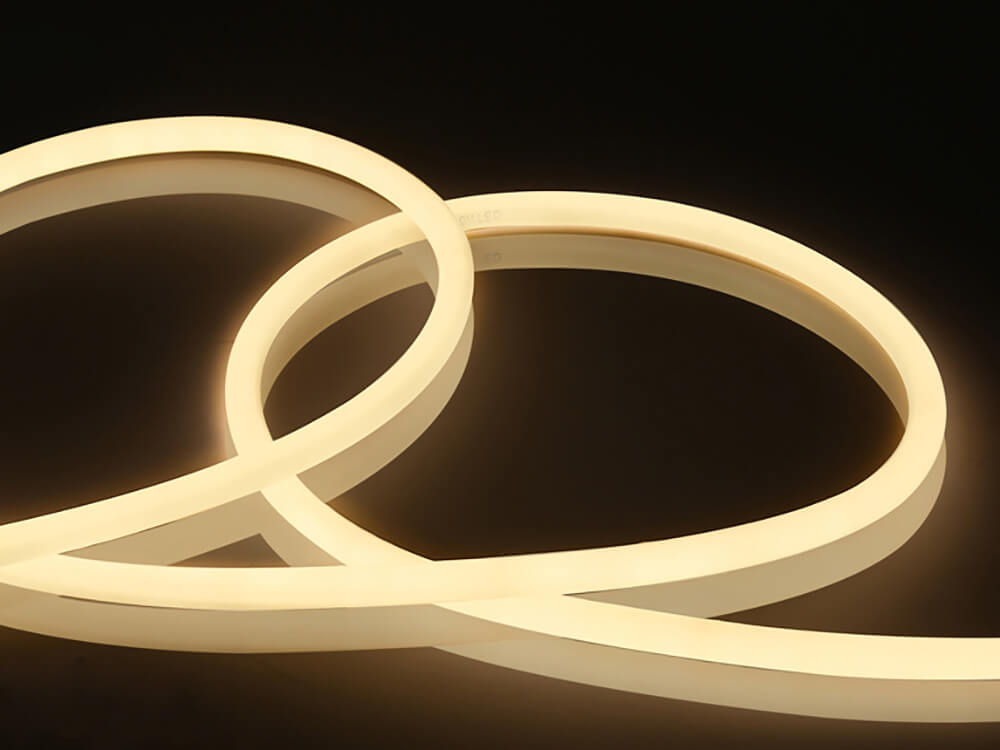

LDNR15 LED Neon Light
- 360° lighting, D=15mm
- 0603 SMD, 360LEDs/M
- Power – 11W
- >90 CRI
- CCT: 2400K~6000K
- Up to 50000hours Lifespan
Specifications:
Item No.: LD-NR15-24-11P7-W

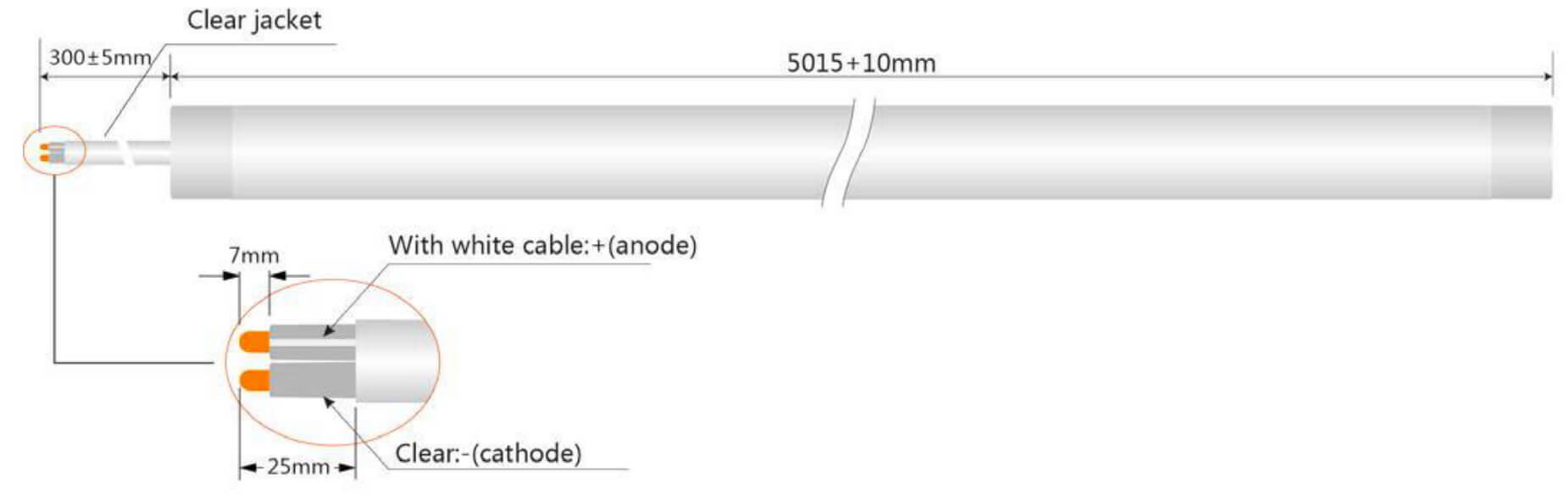

- Dimension:

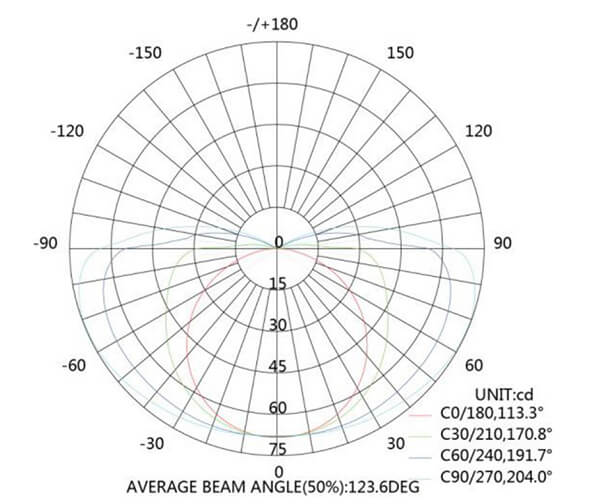

- Light distribution:
- Features:
-
- Seamless and uniform light output, dot free
- Bendable at horizontal direction
- IP67 protection
- High light transmittance, environmental silicone material
- Robust housing with high quality silicon, UV proof for true
- Outdoor application
- Easy installation with clips and bendable track
- Cut-able for flexible application
- Light source: high luminous efficiency
- LM80 test proved
| LED Type/QTY : | 0603 SMD ; 360 LEDs/M |
|---|---|
| Cutting Interval : | 50 mm |
| Voltage : | DC 24V |
| Power : | 11 W/M |
| Lumens : | 680~790 LM/M(+/-10%) |
| Light Color : | Red, Green, Blue, Yellow, White – 1800K~6000K |
| IP Lever : | IP67 |
| Standard Length : | 5m / reel |
| Work Temperature: | -25°C ~ 60°C |
| Storage Temperature : | -30°C ~ 80°C |
Myledy IP Grade Introduction:
IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.
Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.
IP20
Non-Waterproof
IP62
Silicon Glue
IP65
Silicon Sleeve
IP66
Silicon Extrusion
IP67
Silicon Glue with
Half Sleeve
IP68
Silicon Glue With
Full Sleeve
Regular Wiring Method:
First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.
Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.
Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.
