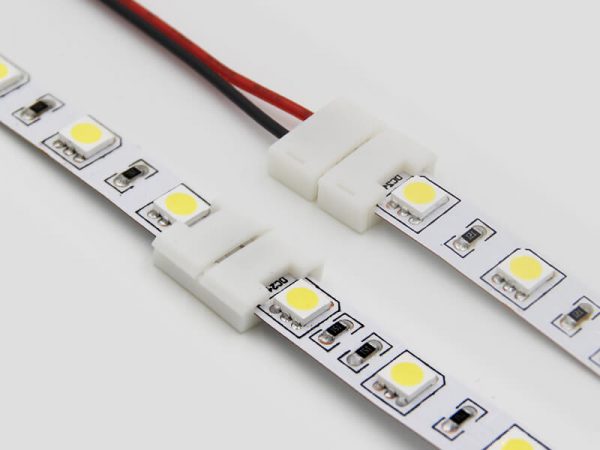

Non-Waterproof LED Strip Connector
- For non-waterproof led strip
- Solderless design, easy to use
- Workable LED qty 30-120led/m
- Big contact pad ensure secure connection
- Optional for single color, RGB, RGBW strip
Specifications:
- These LED strip connectors are specially designed for non-waterproof LED strips. The built-in elastic pin will press the pad when the LED strip is inserted, the connection only needs to be inserted and pressed.
Applications & Use:
SR series – Snap Down Non-Waterproof Connectors uses a V-shaped pin with a center hole, and the contact point of the pad is twice as much as that of similar products on the market.
This design reduces resistance and spark discharge, making the connection more stable and secure. By adding metal teeth to the cover, the connector can better secure the LED strip.
Types Of SR series Non-waterproof LED tape Connectors:
The Connector Series include 8mm 2 pins (single color), 10mm 2 pins (single color), 10mm 4 pins (RGB), 12mm 5 pins (RGBW).
- For 8mm PCB, single color, non-waterproof LED strip
| Item No. | LD-R0802 | LD-R0812 | LD-R0822 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 15cm | 15cm |
| Pin Pitch | 3.6mm | ||
| Working Voltage & Current | DC3V~24V 3A | ||
| Wire Gauge | 22 AWG | ||
| Wire Color | Red & Black | ||
- For 10mm PCB, single color, non-waterproof LED strip
| Item No. | LD-R1002 | LD-R1012 | LD-R1022 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 15cm | 15cm |
| Pin Pitch | 4.8mm | ||
| Working Voltage & Current | DC3V~24V 3A | ||
| Wire Gauge | 22 AWG | ||
| Wire Color | Red & Black | ||
- For 10mm PCB, RGB color, non-waterproof LED strip
| Item No. | LD-R1004 | LD-R1014 | LD-R1024 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 15cm | 15cm |
| Pin Pitch | 2.4mm | ||
| Working Voltage & Current | DC3V~24V 3A | ||
| Wire Gauge | 22 AWG | ||
| Wire Color | Black-Green-Red-Blue | ||
- For 12mm PCB, RGBW color, non-waterproof LED strip
| Item No. | LD-R1205 | LD-R1215 | LD-R1225 |
| Joint Type | strip to strip joint | strip to power | strip to strip bridge |
| Standard Wire Length | / | 15cm | 15cm |
| Pin Pitch | 2.4mm | ||
| Working Voltage & Current | DC3V~24V 3A | ||
| Wire Gauge | 22 AWG | ||
| Wire Color | Black-Green-Red-Blue-White | ||
Myledy IP Grade Introduction:
IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.
Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.
IP20
Non-Waterproof
IP62
Silicon Glue
IP65
Silicon Sleeve
IP66
Silicon Extrusion
IP67
Silicon Glue with
Half Sleeve
IP68
Silicon Glue With
Full Sleeve
Regular Wiring Method:
First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.
Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.
Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.
