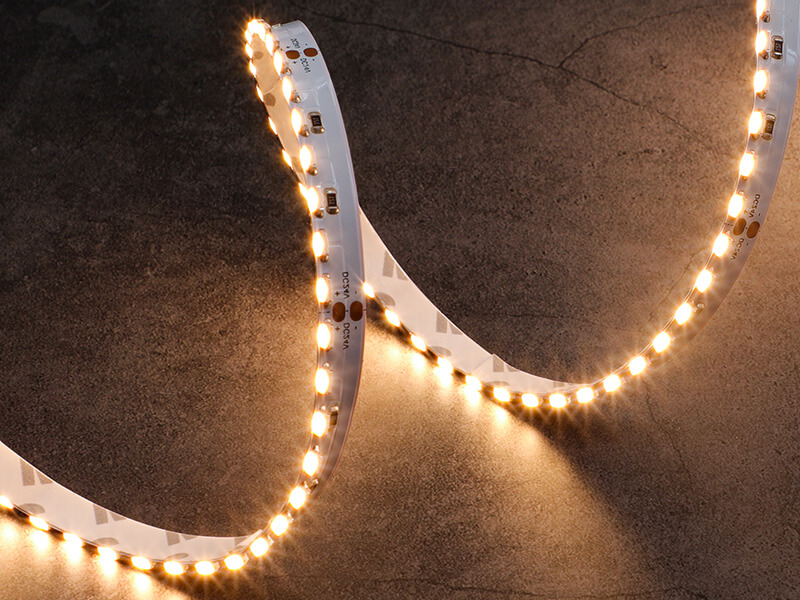

Side Emitting LED Strip Lights
- Qualified 315LED & 4020LED
- 60 / 96 / 120 / 70 / 140 LEDs/M Optional
- Side Emitting Lighting
- >80 CRI
- 2700 ~ 7000K CCT
- Up to 50000hours Lifespan
- 5 years warranty
Specifications:
Myledy side-emitting LED strips are packaged to the LEDs to the side of the flexible PCB instead of vertically up. It can illuminate objects from the side and is suitable for neon lights and glowing letters. The light can be emitted from the side rather than from the top of the PCB. Our side-emitting LED strips are featured with:
- Special Side Lighting LED Strip
- Slim Design
- 2700~7000K Widely CCT, >80 CRI
- Fully Dimmable
- Perfect Heat-dissipation to ensure 50000hours Lifespan
Application & Wide Use
These strips are great for outlining your pools, aquariums, or even buildings, giving them an edgy glow on the corners.:
- Architectural decorative lighting
- Applicable for automobile, boat and bicycle decoration
- Advertisement lighting box edge
- sign lighting
- Holiday, event, show exhibition decoration
Like every other LED, these LED strips come with adhesive, so all you need to do is fix them in the required position and have fun while decorating your beloved spaces or objects.

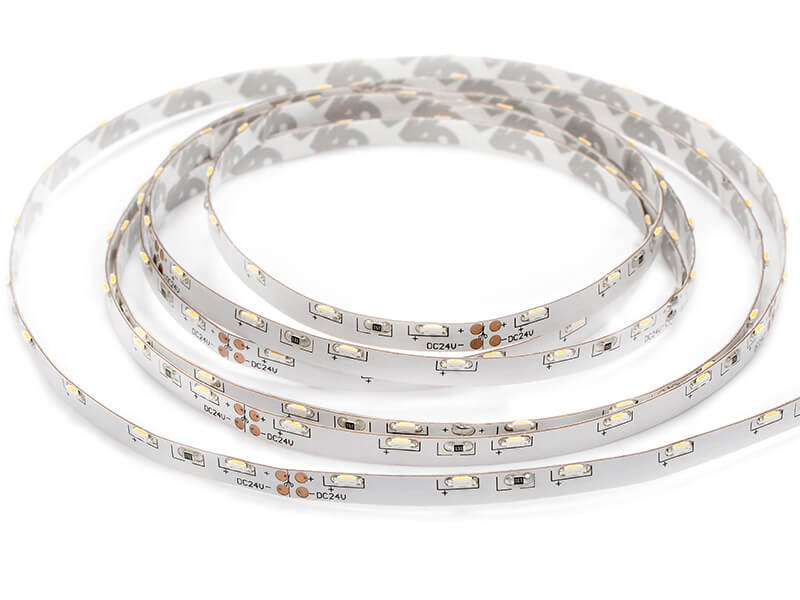

Item: LD-315-24-60S05-05P0-W
- LED Qty: 60 LEDs/M
- PCB Width: 5 mm / 8 mm
- Power: 4.8 W/M
- Lumen: 384-401 LM/M
- Voltage: 24V DC
- Color: 2000K – 7000K, >80CRI
- Cutting interval:
- Waterproof: IP20/ IP62/IP66/IP67/IP68
Dimension

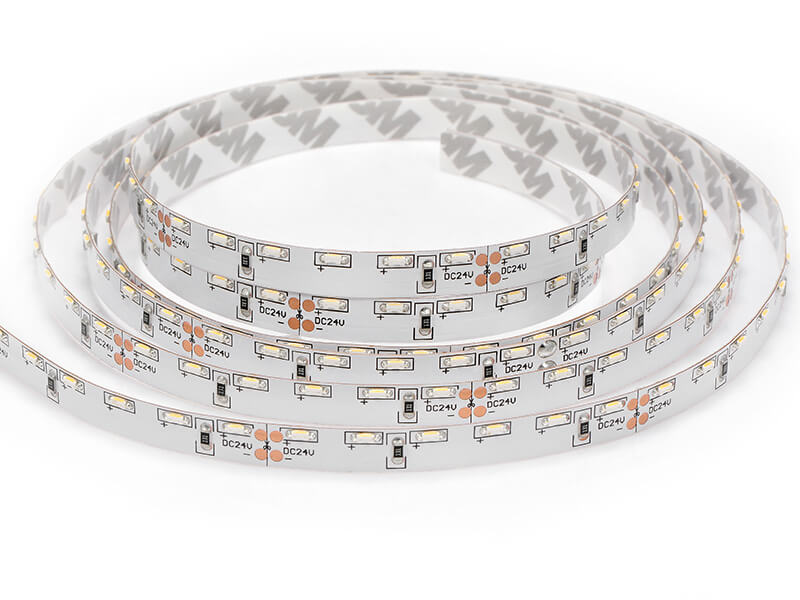

Item: LD-315-24-96S05-07P0-W
- LED Qty: 96 LEDs/M
- PCB Width: 5mm / 8mm
- Power: 7.6 W/M
- Lumen: 616-655 LM/M
- Voltage: 24V DC
- Color: 2700K – 7000K, >80 CRI
- Cutting interval:
- Waterproof: IP20/ IP62/IP66/IP67/IP68
Dimension
Item: LD-315-24-120S08-09P0-W
- LED Qty: 120 LEDs/M
- PCB Width: 8mm
- Power: 9.6W/M
- Lumen: 1210–1335 LM/M
- Voltage: 24V DC
- Color: 2000K – 6500K, >80 CRI
- Cutting interval: 50mm
- Waterproof: IP20/ IP62/IP66/IP67/IP68
Dimension
Item: LD-315-24-120S08-09P0-W
- LED Qty: 120 LEDs/M
- PCB Width: 8mm
- Power: 9.6W/M
- Lumen: 1210–1335 LM/M
- Voltage: 24V DC
- Color: 2000K – 6500K, >80 CRI
- Cutting interval: 50mm
- Waterproof: IP20/ IP62/IP66/IP67/IP68
Dimension
Item: LD-4020-24-70S08-05P0-W
- LED Qty: 70 LEDs/M
- PCB Width: 8 mm
- Power: 4.8 W/M
- Lumen: 530-600 LM/M
- Voltage: 24V DC
- Color: 2700K – 6500K, >90 CRI
- Cutting interval: 100mm
- Waterproof: IP20/ IP62/IP66/IP67/IP68
Dimension
Item: LD-4020-24-140S08-09P0-W
- LED Qty: 140 LEDs/M
- PCB Width: 8 mm
- Power: 8.6 W/M
- Lumen: 1060-1160 LM/M
- Voltage: 24V DC
- Color: 2700K – 6500K, >90 CRI
- Cutting interval: 50mm
- Waterproof: IP20/ IP62/IP66/IP67/IP68
Dimension
Myledy IP Grade Introduction:
IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.
Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.
IP20
Non-Waterproof
IP62
Silicon Glue
IP65
Silicon Sleeve
IP66
Silicon Extrusion
IP67
Silicon Glue with
Half Sleeve
IP68
Silicon Glue With
Full Sleeve
Regular Wiring Method:
First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.
Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.
Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.
