Special single colour LED Strip Lights
- Qualified 2835LED
- 120 LEDs/M, 196 LEDs/M
- Dedicated occasion lighting
- >90 CRI, <5 SDCM
- Up to 50000hours Lifespan
- 5 years warranty
Specifications:
Myledy side-emitting LED strips are packaged to the LEDs to the side of the flexible PCB instead of vertically up. It can illuminate objects from the side and is suitable for neon lights and glowing letters. The light can be emitted from the side rather than from the top of the PCB. This makes our side-emitting LED strips with two special features:
- The minimal installation width is only 4mm.
- Lighting products for special occasions, such as curved counters, and convex, or concave surfaces.
Myledy has developed 2 LED strip lights with different CRI levers for selection:
Item No.: LD-2835H-24-192S10-14P0-C
- High-quality 2835 SMD
- 192 leds/m
- Lumens: 14.4W/m
- Power: 24V DC
- PCB Width: 10mm
- Cutting Length: 41.7mm
- IP grade: IP20 / IP62 / IP65 / IP67 / IP78
Dimension

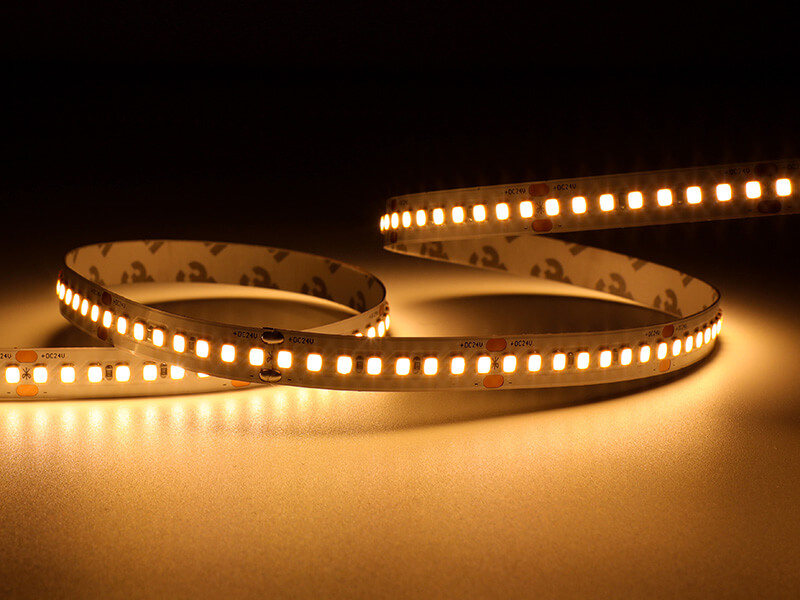

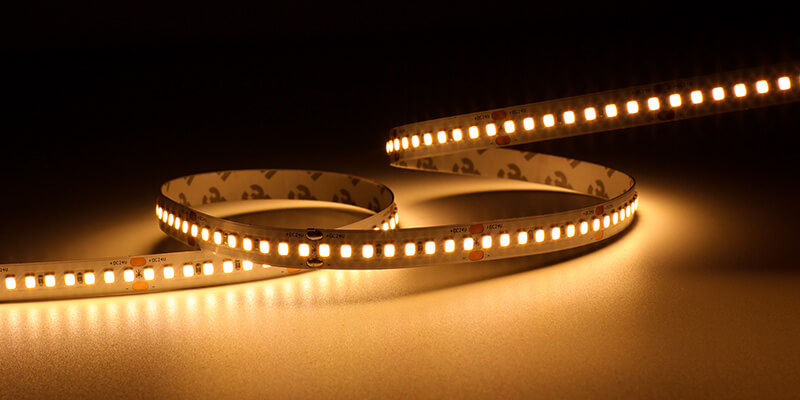

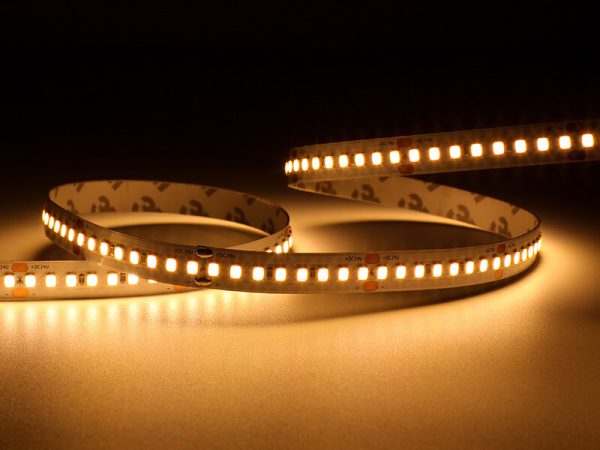

Cake/Cheese LED strip light
Prcp WL: Ld=588nm; Peak WL: Lp=627nm

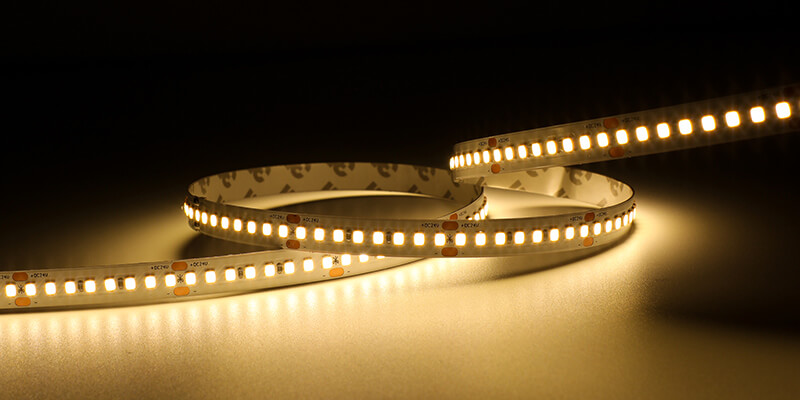

Fruit LED strip light
Prcp WL: Ld=584nm; Peak WL: Lp=623nm

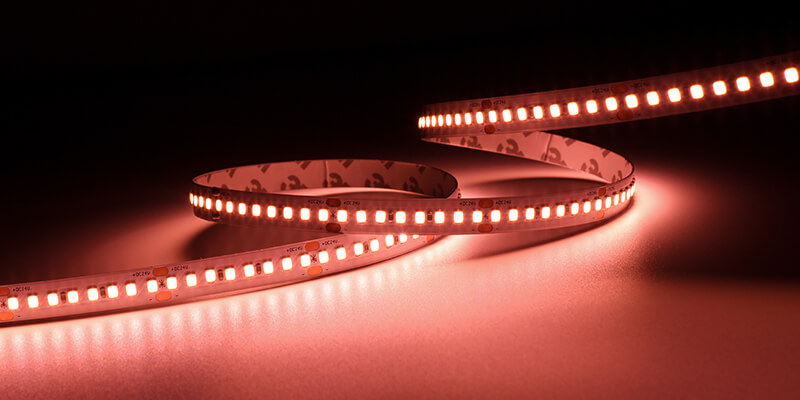

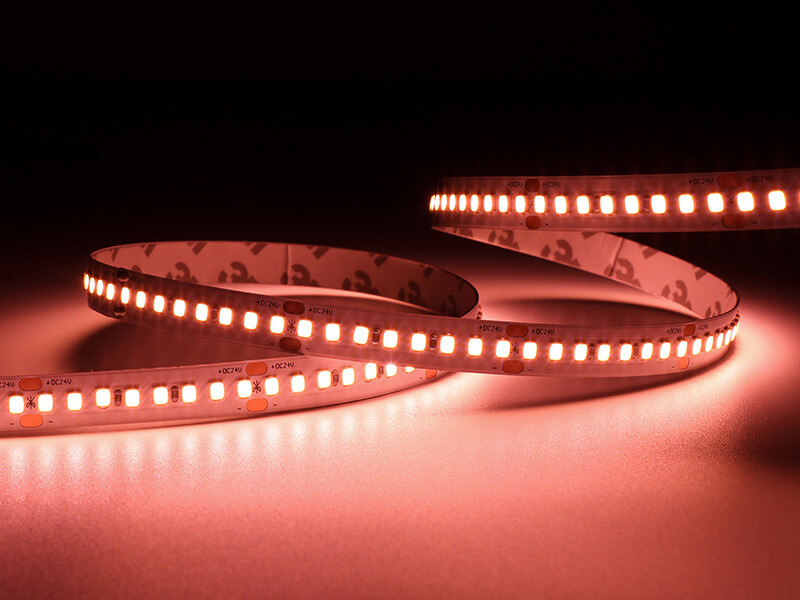

fresh meet LED Strip light
Prcp WL: Ld=603 ; Peak WL: Lp=630nm

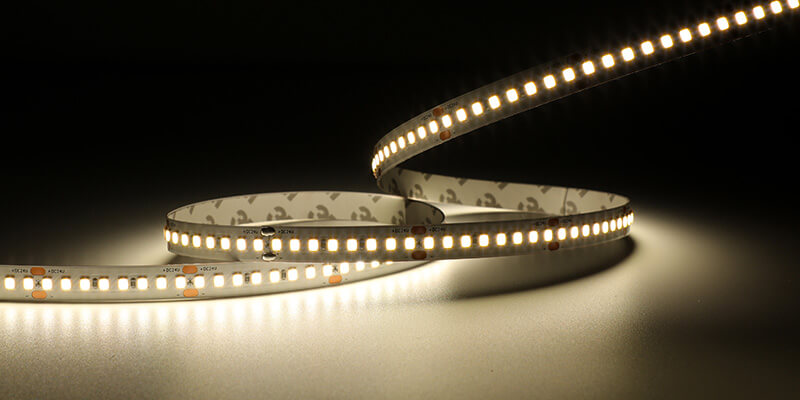

jadeite LED strip light
Prcp WL: Ld=581; Peak WL: Lp=457nm

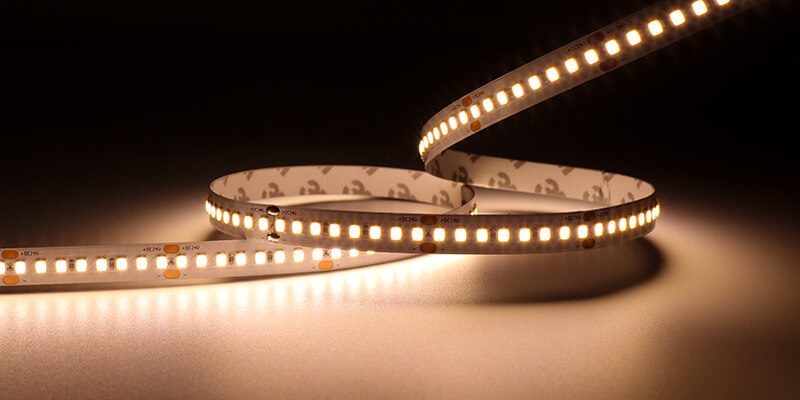

golden LED strip light
Prcp WL: Ld=590; Peak WL: Lp=634nm

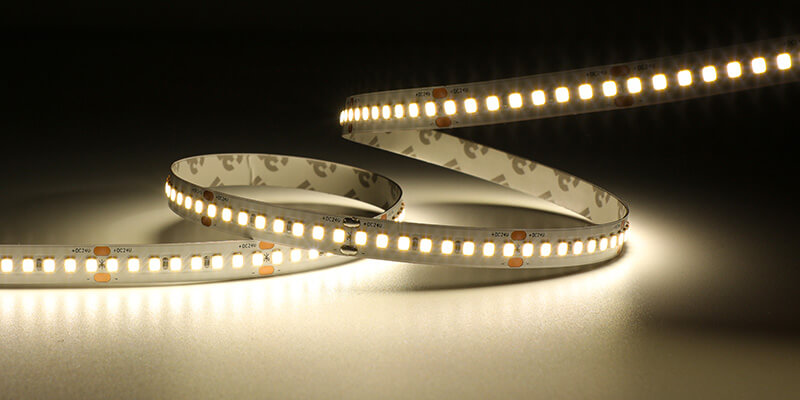

Seafood LED strip light
Prcp WL: Ld=580nm; Peak WL: Lp=456nm

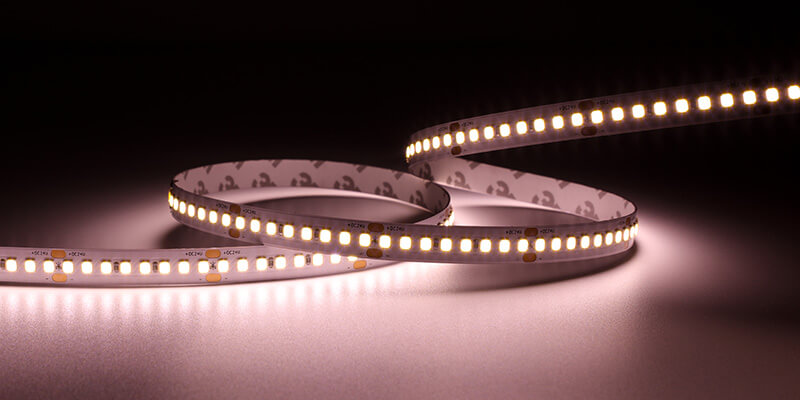

Pickled ham LED Strip Light
Prcp WL: Ld=494nm; Peak WL: Lp=452nm

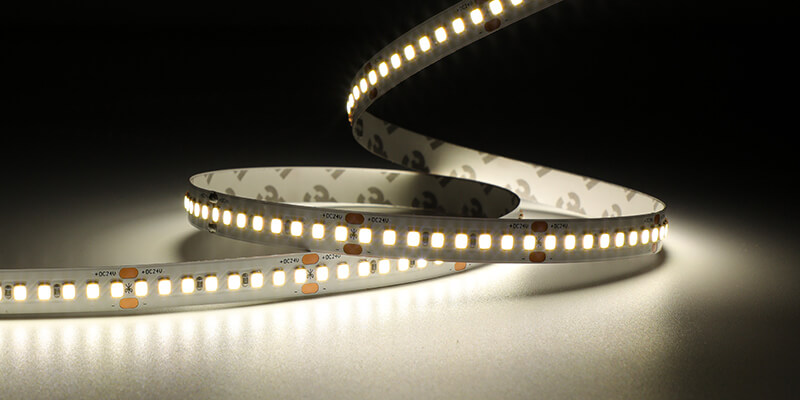

cosmetic LED strip light
Prcp WL: Ld=579nm ; Peak WL: Lp=456nm

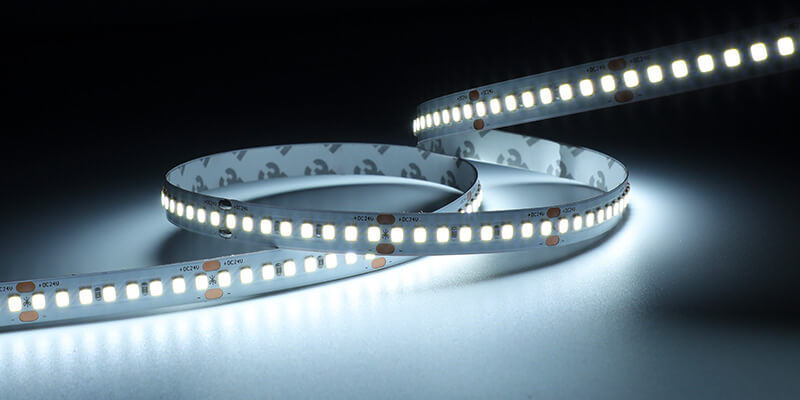

diamond LED strip light
Prcp WL: Ld=480nm ; Peak WL: Lp=455nm

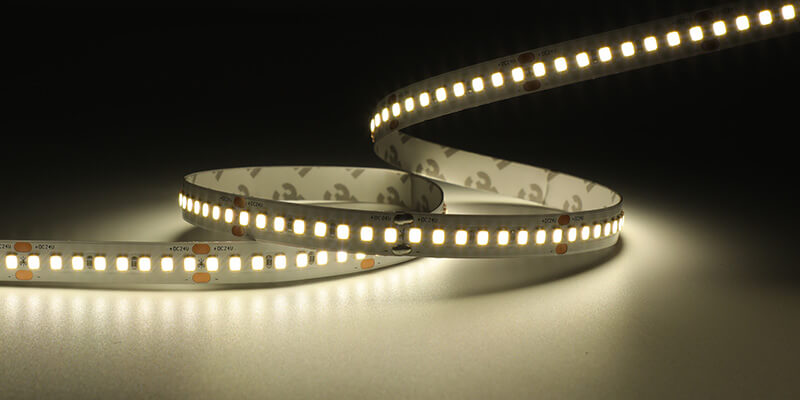

crystal LED strip light
Prcp WL: Ld=579 ; Peak WL: Lp=456nm
Item No.: LD-2835L-24-120S08-10P0-C
- High-quality 2835 SMD
- 120 leds/m
- Lumens: 9.6W/m
- Power: 24V DC
- PCB Width: 8 mm
- Cutting Length: 50mm
- IP grade: IP20 / IP62 / IP65 / IP67 / IP78

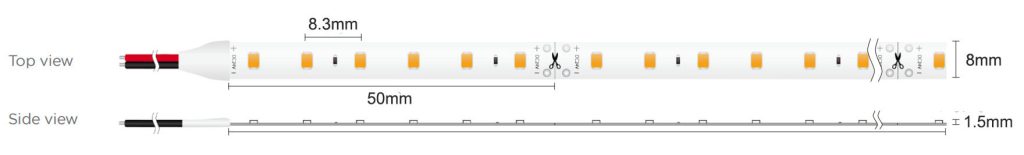

Demension

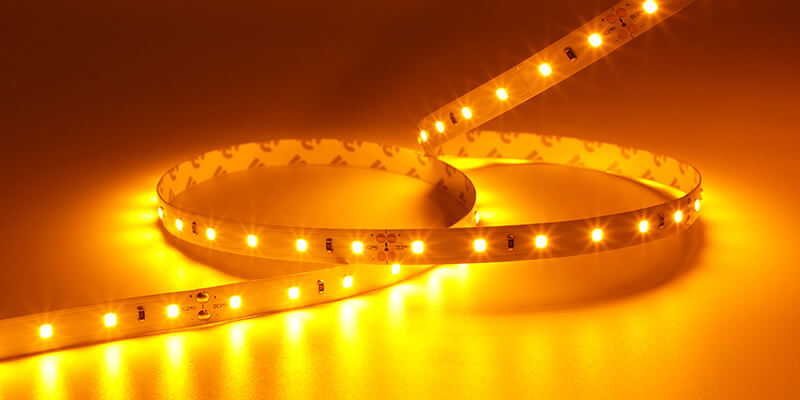

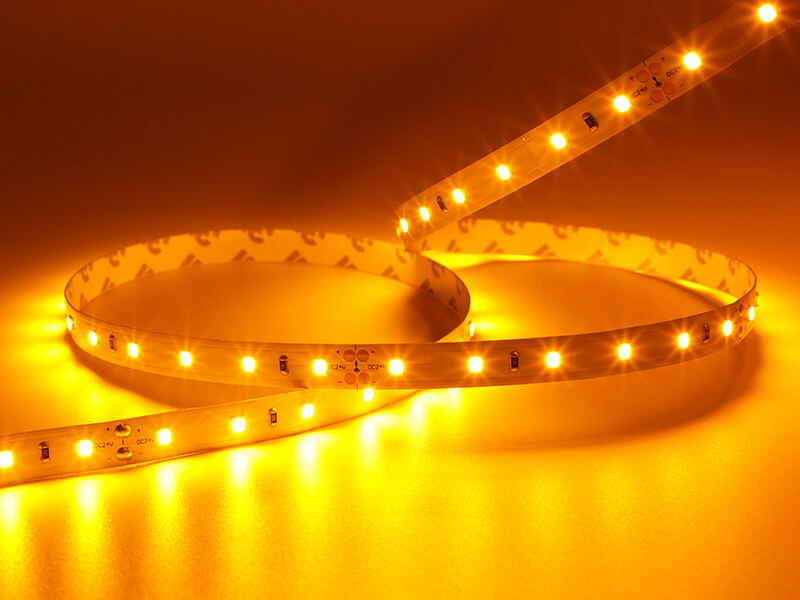

golden light
Prcp WL: Ld=590nm; Peak WL: Lp=594nm

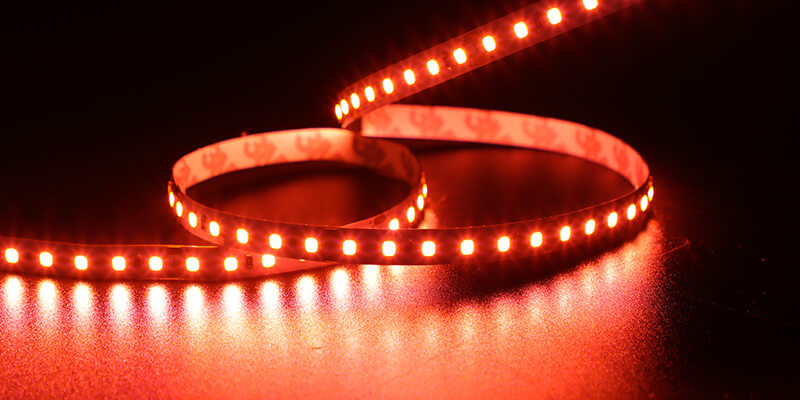

tomato led strip light
Prcp WL: Ld=608nm; Peak WL: Lp=613nm

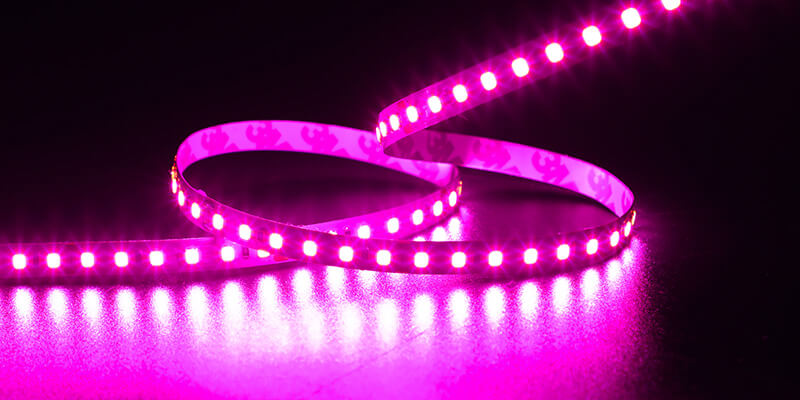

rose-red LED strip light
Prcp WL: Ld=553nm; Peak WL: Lp=451nm

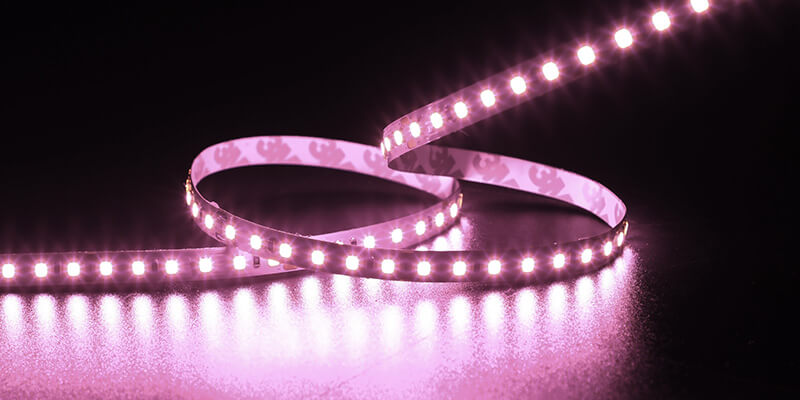

pink LED strip light
Prcp WL: Ld=501nm; Peak WL: Lp=451nm

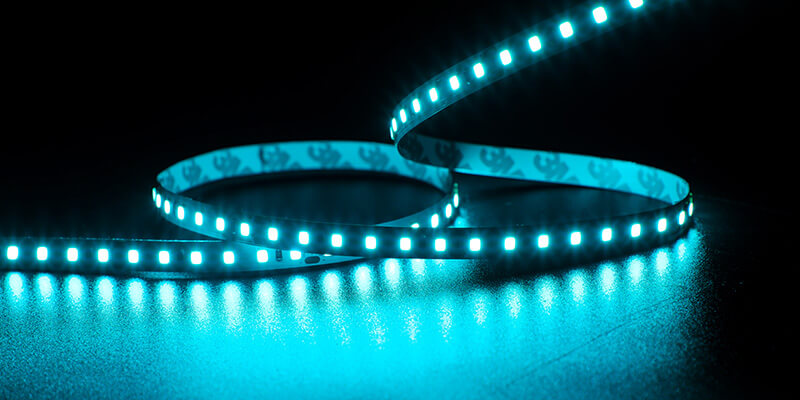

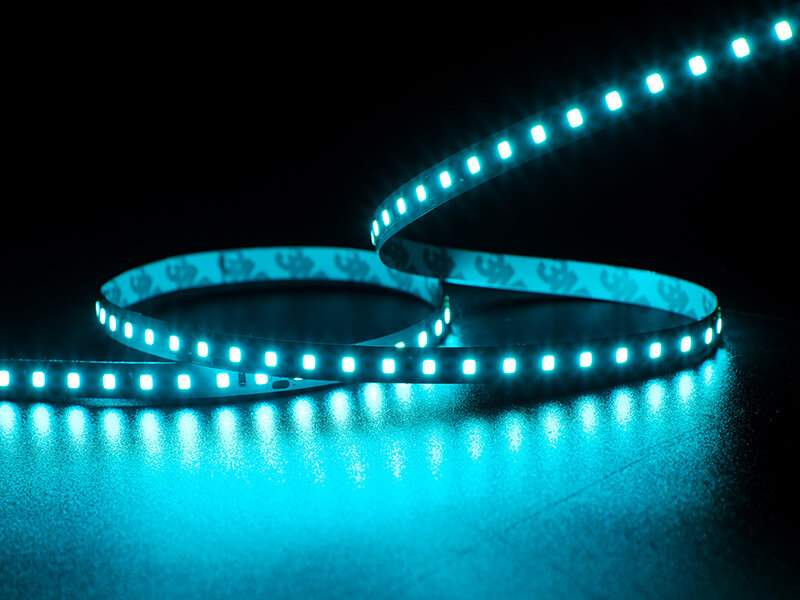

ice-blue LED strip light
Prcp WL: Ld=489nm; Peak WL: Lp=493nm

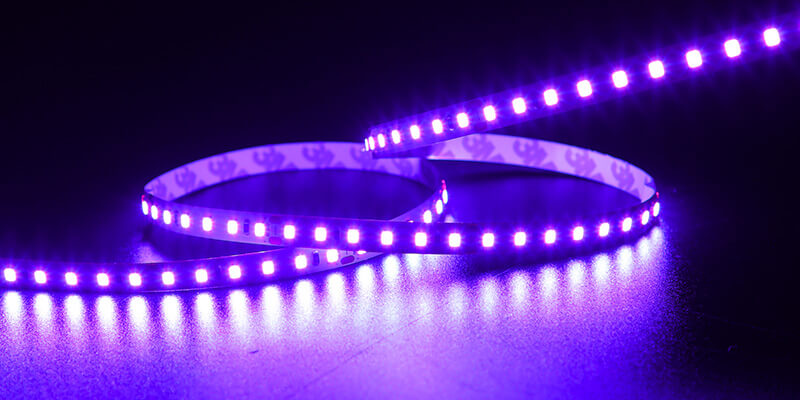

violet LED strip light
Prcp WL: Ld=440nm; Peak WL: Lp=451nm
Myledy IP Grade Introduction:
IP is an acronym “Ingress Protection”, a measurement standard ratings used to indicate the level of protection for electrical equipment against solids and liquids.
Myledy is equipped with state of the art manufacturing equipment utilizing cutting edge technology and top quality silicone glue to offer anti-yellowing, resistance to high and low temperature and diverse IP rating lever IP62~IP68 waterproofing for special applications.
IP20
Non-Waterproof
IP62
Silicon Glue
IP65
Silicon Sleeve
IP66
Silicon Extrusion
IP67
Silicon Glue with
Half Sleeve
IP68
Silicon Glue With
Full Sleeve
Regular Wiring Method:
First, Calculate The Wattage of Each LED Strip — You should already have an idea of how much power will be required to run your LED light tapes. However, there might be some additions or subtractions in the number after you’ve cut and connected the tapes together. So, calculate the overall wattage required to power your flexible LED light strips again.
Second, Find Compatible Power Supply — You need to choose a driver that will use only 80% of its overall power to run the LED tapes. This is very important for the longevity of both your power supply and LED strips.
Third, Connect LED Strip to Power Supply — You can make series circuit or parallel circuit for the LED strip lights. And all Myledy LED strip lights are dimmable, you can also connect a dimmer for better brightness control.
